Description

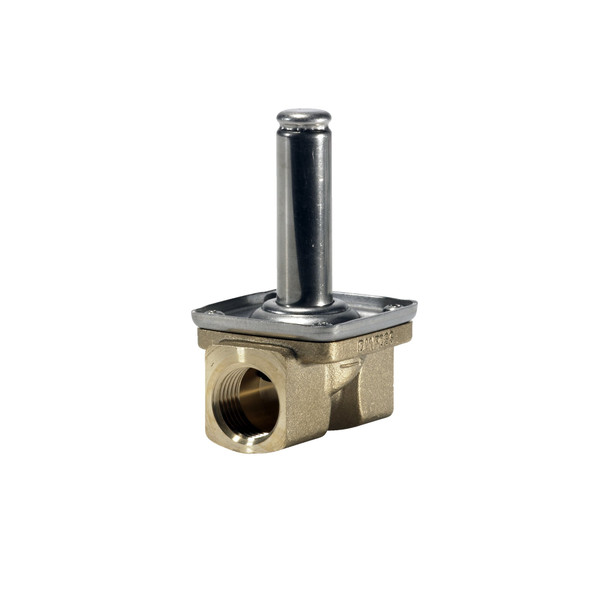

Product name: Solenoid valve, Type: EV210B, Function: NC, Connection size [in]: 1/2, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 1.160, Kv value [m³/h]: 1.000, Seal Material: FKM
Product details
| Gross weight | 0.28 kg |
| Net weight | 0.26 kg |
| EAN | 5702423179305 |
| Gross weight | 0.28 kg |
| Net weight | 0.26 kg |
| EAN | 5702423179305 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Body material | Brass |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 1.16 gal/min |
| Differential pressure [bar] [Max] | 3 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 44 psi |
| Differential pressure [psi] [Min] | 0 psi |
| Est. time to close, water [ms] | 30 ms |
| Est. time to open, water [ms] | 20 ms |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Function | NC |
| Further information | Can be used for rough vacuum |
| Kv value [m³/h] | 1 m3/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 3 bar |
| Max. Working Pressure [psig] | 44 psig |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [Max] | 100 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 212 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size [mm] | 8 mm |
| Orifice size fraction [in] | 5/16 in |
| Packing format | Multi pack |
| Parts Program name | EV210B |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 20 pc |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV210B 8B G 12F NC000 |
| Type | EV210B |
| Type designation | EV210B 8 |
| Valve operation | SERVO-DIAPHRAGM |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Body material | Brass |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 1.16 gal/min |
| Differential pressure [bar] [Max] | 3 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 44 psi |
| Differential pressure [psi] [Min] | 0 psi |
| Est. time to close, water [ms] | 30 ms |
| Est. time to open, water [ms] | 20 ms |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Function | NC |
| Further information | Can be used for rough vacuum |
| Kv value [m³/h] | 1 m3/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 3 bar |
| Max. Working Pressure [psig] | 44 psig |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [Max] | 100 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 212 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size [mm] | 8 mm |
| Orifice size fraction [in] | 5/16 in |
| Packing format | Multi pack |
| Parts Program name | EV210B |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 20 pc |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV210B 8B G 12F NC000 |
| Type | EV210B |
| Type designation | EV210B 8 |
| Valve operation | SERVO-DIAPHRAGM |
