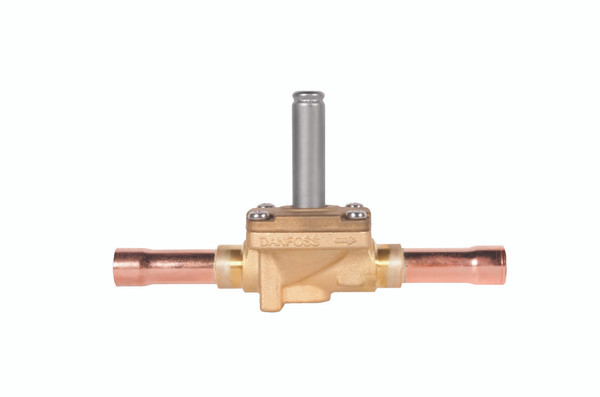

032L1111 Danfoss Solenoid valve, EVR 40

Write a Review
SKU:
032L1111
Availability:
2 - 3 weeks

Product details Gross weight 5.03 kg Net weight 4.59 kg EAN 5702428943123 Gross weight 5.03 kg Net weight 4.59 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 5.03 kg
Net weight 4.59 kg
EAN 5702428943123
Gross weight 5.03 kg
Net weight 4.59 kg
EAN 5702428943123



Actuator system [mm] 13.5 mm
Ambient temperature -40 - 80 °C
Ambient temperature range [°F] [Max] 175 °F
Ambient temperature range [°F] [Min] -40 °F
Approval UL
EAC
Coil No
Cv value [gal/min] 28 gal/min
Direction Straightway
Function NC
Inlet connection type SOLDER, ODF
Inlet size [in] 2 1/8 IN
Kv value [m³/h] 24.2 m3/h
Manual operation option Yes
Max. Working Pressure [bar] 45.2 bar
Max. Working Pressure [psig] 655 psig
MaxOPD[bar] 10W AC 38 bar
MaxOPD[bar] 20W DC 17 bar
MaxOPD[bar] coil BJ/BX 31 bar
MaxOPD[psi] 10W AC 550 psi
MaxOPD[psi] 20W DC 246 psi
MaxOPD[psi] coil BJ/BX 450 psi
Medium temperature range [°C] [Max] 105 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 221 °F
Medium temperature range [°F] [Min] -40 °F
MinODP [bar] 0.2 bar
MinODP [psi] 2.9 psi
MOPD[bar/psi] COIL DEPENDEND
Orifice size [mm] 25.4 mm
Outlet connection type SOLDER, ODF
Outlet size [in] 2 1/8 IN
Packing format Single pack
Parts Program name EVR
Product family name EVR v2
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 1 pc
Refrigerants R125
R134a
R152a
R22
R404A
R407A
R407C
R407F
R410A
R448A
R449A
R450A
R452A
R507
R513A
Type EVR 40
Type designation Solenoid valve, Solder
Valve operation SERVO-PISTON
Actuator system [mm] 13.5 mm
Ambient temperature -40 - 80 °C
Ambient temperature range [°F] [Max] 175 °F
Ambient temperature range [°F] [Min] -40 °F
Approval UL
EAC
Coil No
Cv value [gal/min] 28 gal/min
Direction Straightway
Function NC
Inlet connection type SOLDER, ODF
Inlet size [in] 2 1/8 IN
Kv value [m³/h] 24.2 m3/h
Manual operation option Yes
Max. Working Pressure [bar] 45.2 bar
Max. Working Pressure [psig] 655 psig
MaxOPD[bar] 10W AC 38 bar
MaxOPD[bar] 20W DC 17 bar
MaxOPD[bar] coil BJ/BX 31 bar
MaxOPD[psi] 10W AC 550 psi
MaxOPD[psi] 20W DC 246 psi
MaxOPD[psi] coil BJ/BX 450 psi
Medium temperature range [°C] [Max] 105 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 221 °F
Medium temperature range [°F] [Min] -40 °F
MinODP [bar] 0.2 bar
MinODP [psi] 2.9 psi
MOPD[bar/psi] COIL DEPENDEND
Orifice size [mm] 25.4 mm
Outlet connection type SOLDER, ODF
Outlet size [in] 2 1/8 IN
Packing format Single pack
Parts Program name EVR
Product family name EVR v2
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 1 pc
Refrigerants R125
R134a
R152a
R22
R404A
R407A
R407C
R407F
R410A
R448A
R449A
R450A
R452A
R507
R513A
Type EVR 40
Type designation Solenoid valve, Solder
Valve operation SERVO-PISTON
Product name: Solenoid valve, Type: EVR 40, Function: NC, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Manual operation option: Yes
