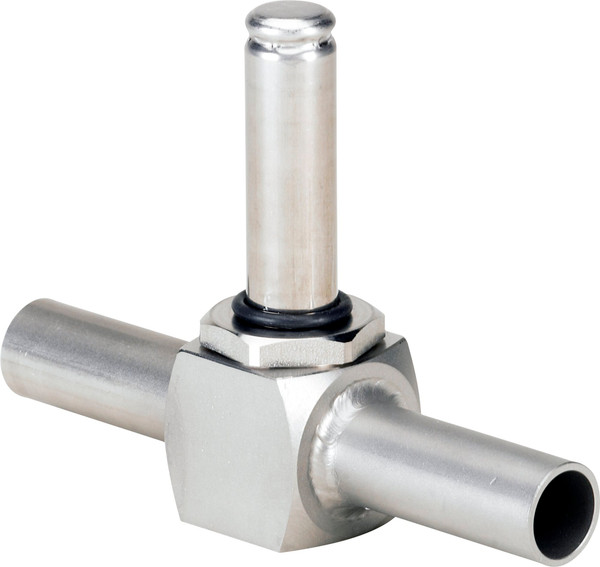

Description
Function: NC, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Manual operation option: No, Cv value [gal/min]: 0.270, Kv value [m³/h]: 0.230
Product details
| Gross weight | 0.35 kg |
| Net weight | 0.3 kg |
| EAN | 5702422038368 |
| Gross weight | 0.35 kg |
| Net weight | 0.3 kg |
| EAN | 5702422038368 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Body material | Stainless steel |
| Coil | No |
| Connection material | Stainless steel |
| Cv value [gal/min] | 0.27 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection standard | EN 10220 |
| Inlet connection type | Butt weld |
| Inlet size [in] | 3/8 IN |
| Kv value [m³/h] | 0.23 m3/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0 bar |
| Orifice size [mm] | 14 mm |
| Outlet connection standard | EN 10220 |
| Outlet connection type | Butt weld |
| Outlet size [in] | 3/8 IN |
| Packing format | Multi pack |
| Parts Program name | EVRS / EVRST |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 16 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | Solenoid valve spare parts |
| Type | EVRS 3 |
| Type designation | Solenoid valve |
| Valve operation | DIRECT |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Body material | Stainless steel |
| Coil | No |
| Connection material | Stainless steel |
| Cv value [gal/min] | 0.27 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection standard | EN 10220 |
| Inlet connection type | Butt weld |
| Inlet size [in] | 3/8 IN |
| Kv value [m³/h] | 0.23 m3/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0 bar |
| Orifice size [mm] | 14 mm |
| Outlet connection standard | EN 10220 |
| Outlet connection type | Butt weld |
| Outlet size [in] | 3/8 IN |
| Packing format | Multi pack |
| Parts Program name | EVRS / EVRST |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 16 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | Solenoid valve spare parts |
| Type | EVRS 3 |
| Type designation | Solenoid valve |
| Valve operation | DIRECT |
