Description

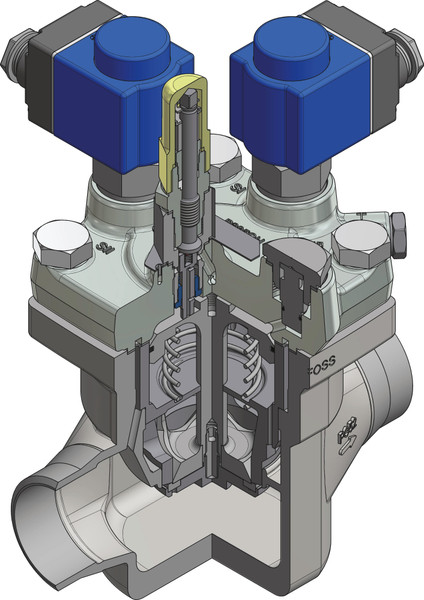

ICSH 65 Needle Housing - Repair Kit, Used for product: ICSH-65
Product details
| Gross weight | 17.4 kg |
| Net weight | 15.05 kg |
| EAN | 5702428514453 |
| Gross weight | 17.4 kg |
| Net weight | 15.05 kg |
| EAN | 5702428514453 |
| Category | II |
| Comments | FUNCTION MODULE INSTALLED |
| Connection standard | ASME B 16.11 |
| Cv value [gal/min] | 81.2 gal/min |
| Direction | Straightway |
| Fluid Group | I |
| Further information | FUNCTION MODULE INSTALLED |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Socket weld |
| Kv value [m³/h] | 70 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Socket weld |
| Packing format | Single pack |
| Product description | Servo operated valve |
| Product group | Press. and temp. regul. valves |
| Product name | Pilot operated servo valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Top cover | 3 function modules |
| Type | ICSH 65 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve version | Standard version |
| Category | II |
| Comments | FUNCTION MODULE INSTALLED |
| Connection standard | ASME B 16.11 |
| Cv value [gal/min] | 81.2 gal/min |
| Direction | Straightway |
| Fluid Group | I |
| Further information | FUNCTION MODULE INSTALLED |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Socket weld |
| Kv value [m³/h] | 70 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Socket weld |
| Packing format | Single pack |
| Product description | Servo operated valve |
| Product group | Press. and temp. regul. valves |
| Product name | Pilot operated servo valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Top cover | 3 function modules |
| Type | ICSH 65 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve version | Standard version |
