Description

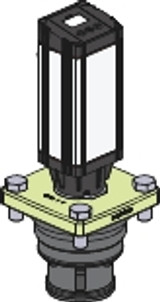

Product description: Function Module
Product details
| Gross weight | 5.02 kg |
| Net weight | 4.64 kg |
| EAN | 5702428237505 |
| Gross weight | 5.02 kg |
| Net weight | 4.64 kg |
| EAN | 5702428237505 |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Cv value [gal/min] | 27 gal/min |
| Kv value [m³/h] | 23 m3/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 13 ' |
| Packing format | Single pack |

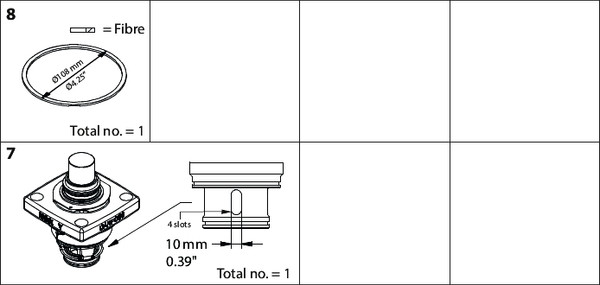

| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Product group | Press. and temp. regul. valves |
| Product name | Function module |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Type | ICM 50-A |
| Used for product | ICV 50 ICV 50 body |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Cv value [gal/min] | 27 gal/min |
| Kv value [m³/h] | 23 m3/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 13 ' |
| Packing format | Single pack |
| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Product group | Press. and temp. regul. valves |
| Product name | Function module |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Type | ICM 50-A |
| Used for product | ICV 50 ICV 50 body |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
