Description

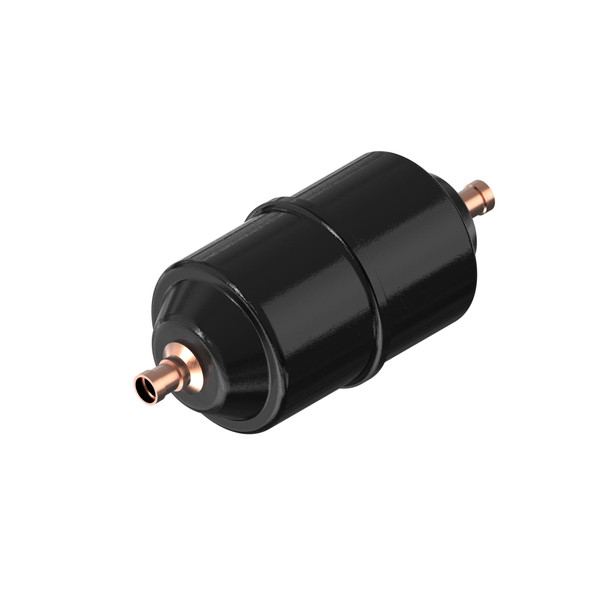

Product name: Hermetic filter drier, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF
Product details
| Gross weight | 0.38 kg |
| Net weight | 0.3 kg |
| EAN | 5702428651547 |
| Gross weight | 0.38 kg |
| Net weight | 0.3 kg |
| EAN | 5702428651547 |
| Acid capacity [g] | 1.38 g |
| Acid capacity [oz] | 0.049 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel Cu-plated |
| Core | Solid core |
| Core Size code | 08 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 196 R290: 155 R32: 165 R404A: 204 R407C: 190 R410A: 178 R507: 214 |
| Drying Cap[Drops of Water]52°C | R134a: 180 R290: 124 R32: 152 R404A: 194 R407C: 176 R410A: 158 R507: 192 |
| Flow capacity [kW] | R134a: 6.3 R290: 7.6 R32: 9.6 R404A: 4.4 R407C: 6.4 R410A: 6.5 R507: 4.3 |
| Flow capacity [TR] | R134a: 1.8 R290: 2.2 R32: 2.7 R404A: 1.3 R407C: 1.8 R410A: 1.9 R507: 1.2 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 1/4 in |
| Inlet connection type | SOLDER, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 3.87 oz |
| Net volume [l] | 0.114 L |
| Outlet 1 connection size [in] | 1/4 in |
| Outlet connection type | SOLDER, ODF |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 24 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 |
| Serviceable | No |
| Shell volume [foz US] | 5.85 oz |
| Shell volume [l] | 0.17 L |
| Solid core surface [cm2] | 118 cm2 |
| Solid core surface [in2] | 18.29 in2 |
| Solid core volume [cm3] | 59 cm3 |
| Solid core volume [in3] | 3.57 in3 |
| Specification key | DCL 082S |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 082S |
| UL approval file name | SA6398 |
| Acid capacity [g] | 1.38 g |
| Acid capacity [oz] | 0.049 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel Cu-plated |
| Core | Solid core |
| Core Size code | 08 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 196 R290: 155 R32: 165 R404A: 204 R407C: 190 R410A: 178 R507: 214 |
| Drying Cap[Drops of Water]52°C | R134a: 180 R290: 124 R32: 152 R404A: 194 R407C: 176 R410A: 158 R507: 192 |
| Flow capacity [kW] | R134a: 6.3 R290: 7.6 R32: 9.6 R404A: 4.4 R407C: 6.4 R410A: 6.5 R507: 4.3 |
| Flow capacity [TR] | R134a: 1.8 R290: 2.2 R32: 2.7 R404A: 1.3 R407C: 1.8 R410A: 1.9 R507: 1.2 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 1/4 in |
| Inlet connection type | SOLDER, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 3.87 oz |
| Net volume [l] | 0.114 L |
| Outlet 1 connection size [in] | 1/4 in |
| Outlet connection type | SOLDER, ODF |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 24 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 |
| Serviceable | No |
| Shell volume [foz US] | 5.85 oz |
| Shell volume [l] | 0.17 L |
| Solid core surface [cm2] | 118 cm2 |
| Solid core surface [in2] | 18.29 in2 |
| Solid core volume [cm3] | 59 cm3 |
| Solid core volume [in3] | 3.57 in3 |
| Specification key | DCL 082S |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 082S |
| UL approval file name | SA6398 |
