Description

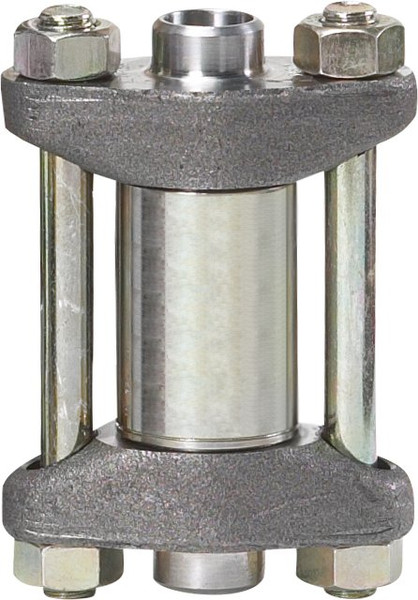

Type designation: Piston assembly, Used for product: NRVA 15-20
Product details
| Gross weight | 1.05 kg |
| Net weight | 1 kg |
| EAN | 5702422029380 |
| Gross weight | 1.05 kg |
| Net weight | 1 kg |
| EAN | 5702422029380 |
| Category | Art. 3, par. 3 |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] | 7 gal/min |
| Fluid Group | I |
| Kv value [m³/h] | 6 m3/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Multi pack |
| Product description | Check Valve |
| Product family name | NRVA |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 284 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRVA 20 |
| Category | Art. 3, par. 3 |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] | 7 gal/min |
| Fluid Group | I |
| Kv value [m³/h] | 6 m3/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Multi pack |
| Product description | Check Valve |
| Product family name | NRVA |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 284 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRVA 20 |
