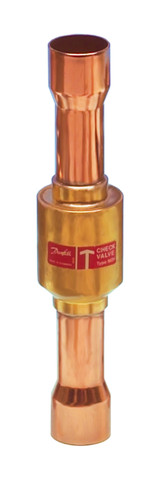

Description
Inlet size [mm]: 18.00, Inlet connection type: SOLDER, ODF, Outlet size [mm]: 18.00, Outlet connection type: SOLDER, ODF
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.27 kg |
| EAN | 5702422122289 |
| Gross weight | 0.3 kg |
| Net weight | 0.27 kg |
| EAN | 5702422122289 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 6.36 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 18 mm |
| Kv value [m³/h] | 5.5 m3/h |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.3 bar |
| Min. Pressure drop [psi] | 4.3 psi |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 18 mm |
| Outside diameter [mm] | 18 mm |
| Packing format | Multi pack |
| Product family name | NRVH |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 28 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerants | R1234yf R1270 R134a R22/R407C R290 R32 R404A/R507 R407A R407F R410A R448A R449A R450A R452A R452B R454B R513A R600 R600a R1234ze(E) |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRVH 19s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 6.36 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 18 mm |
| Kv value [m³/h] | 5.5 m3/h |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.3 bar |
| Min. Pressure drop [psi] | 4.3 psi |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 18 mm |
| Outside diameter [mm] | 18 mm |
| Packing format | Multi pack |
| Product family name | NRVH |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 28 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerants | R1234yf R1270 R134a R22/R407C R290 R32 R404A/R507 R407A R407F R410A R448A R449A R450A R452A R452B R454B R513A R600 R600a R1234ze(E) |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRVH 19s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.27 kg |
| EAN | 5702422122289 |
| Gross weight | 0.3 kg |
| Net weight | 0.27 kg |
| EAN | 5702422122289 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 6.36 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 18 mm |
| Kv value [m³/h] | 5.5 m3/h |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.3 bar |
| Min. Pressure drop [psi] | 4.3 psi |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 18 mm |
| Outside diameter [mm] | 18 mm |
| Packing format | Multi pack |
| Product family name | NRVH |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 28 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerants | R1234yf R1270 R134a R22/R407C R290 R32 R404A/R507 R407A R407F R410A R448A R449A R450A R452A R452B R454B R513A R600 R600a R1234ze(E) |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRVH 19s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 6.36 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 18 mm |
| Kv value [m³/h] | 5.5 m3/h |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.3 bar |
| Min. Pressure drop [psi] | 4.3 psi |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 18 mm |
| Outside diameter [mm] | 18 mm |
| Packing format | Multi pack |
| Product family name | NRVH |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 28 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerants | R1234yf R1270 R134a R22/R407C R290 R32 R404A/R507 R407A R407F R410A R448A R449A R450A R452A R452B R454B R513A R600 R600a R1234ze(E) |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRVH 19s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
