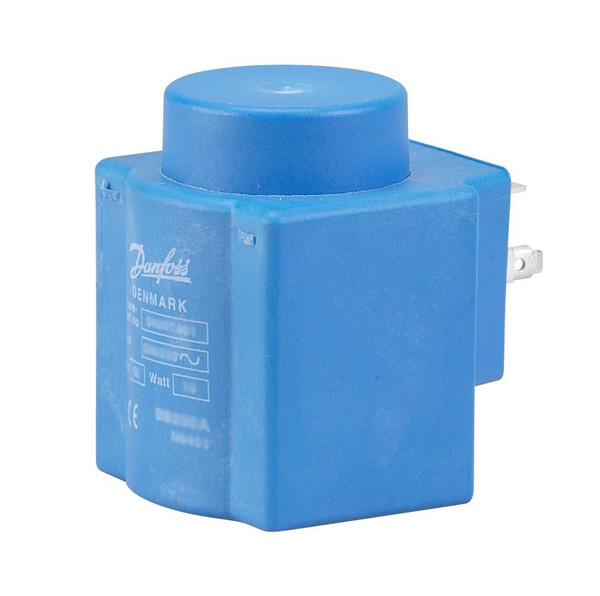

018F7658 Danfoss Solenoid coil, BY240CS

Write a Review
SKU:
018F7658
Availability:
2 - 3 weeks

Product details Gross weight 0.28 kg Net weight 0.27 kg EAN 5702428041256 Gross weight 0.28 kg Net weight 0.27 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.28 kg
Net weight 0.27 kg
EAN 5702428041256
Gross weight 0.28 kg
Net weight 0.27 kg
EAN 5702428041256



Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 120 °F
Ambient temperature range [°F] [Min] -40 °F
Approval C UR US
LLC CDC TYSK
Coil connection DIN Spade
Coil design standard VDE 0580
Coil fastening Clip-on
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
UL 429
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Further information UL approved coil
Packing format Multi pack
Parts Program name EV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV250B
EV251B
Power consumption 50Hz [VA] 32 VA
Power consumption 60Hz [VA] 28 VA
Power consumption [W] 50Hz 16 W
Power consumption [W] 60Hz 14 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 50 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Spare part number 018F7658
Supply voltage 50Hz Max [V] 230 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage 60Hz Min [V] 208 V
Supply voltage [V] AC [Max] 240 V
Supply voltage [V] AC [Min] 208 V
Type BY240CS
Type designation BY240CS
UL approval file name MH29671
Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 120 °F
Ambient temperature range [°F] [Min] -40 °F
Approval C UR US
LLC CDC TYSK
Coil connection DIN Spade
Coil design standard VDE 0580
Coil fastening Clip-on
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
UL 429
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Further information UL approved coil
Packing format Multi pack
Parts Program name EV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV250B
EV251B
Power consumption 50Hz [VA] 32 VA
Power consumption 60Hz [VA] 28 VA
Power consumption [W] 50Hz 16 W
Power consumption [W] 60Hz 14 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 50 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Spare part number 018F7658
Supply voltage 50Hz Max [V] 230 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage 60Hz Min [V] 208 V
Supply voltage [V] AC [Max] 240 V
Supply voltage [V] AC [Min] 208 V
Type BY240CS
Type designation BY240CS
UL approval file name MH29671
Product name: Solenoid coil, Type: BY240CS, Supply voltage [V] AC: 208 - 240, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 13.5 mm
