Description

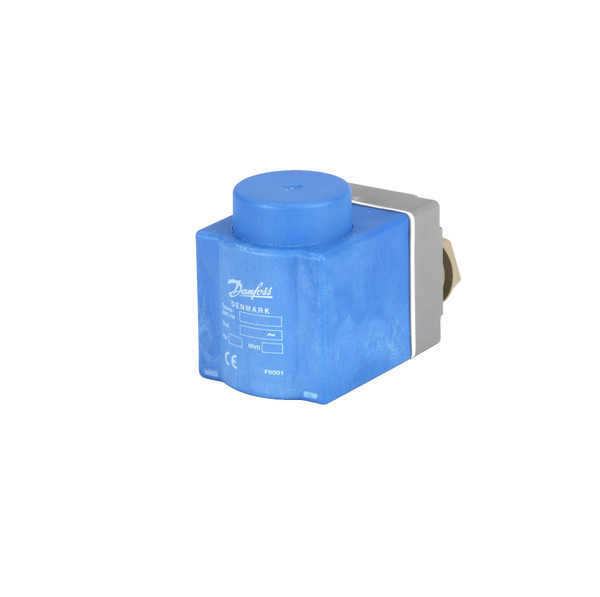

Product name: Solenoid coil, Type: BE012AS, Enclosure rating IP: IP67, Coil connection: Connection box, Actuator size: 13.5 mm
Product details
| Gross weight | 0.33 kg |
| Net weight | 0.31 kg |
| EAN | 5702428023030 |
| Gross weight | 0.33 kg |
| Net weight | 0.31 kg |
| EAN | 5702428023030 |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] [Max] | 11 mm |
| Cable diameter [mm] [Min] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | 50 Hz |
| Packing format | Multi pack |
| Parts Program name | EV210B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV212B EV222B EV224B EV227B EV250B EV251B |
| Power consumption 50Hz [VA] | 18 VA |
| Power consumption [W] 50Hz | 10 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 32 pc |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6181 |
| Supply voltage 50Hz Max [V] | 12 V |
| Type | BE012AS |
| Type designation | BE012AS |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 80 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] [Max] | 11 mm |
| Cable diameter [mm] [Min] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | 50 Hz |
| Packing format | Multi pack |
| Parts Program name | EV210B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV212B EV222B EV224B EV227B EV250B EV251B |
| Power consumption 50Hz [VA] | 18 VA |
| Power consumption [W] 50Hz | 10 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 32 pc |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6181 |
| Supply voltage 50Hz Max [V] | 12 V |
| Type | BE012AS |
| Type designation | BE012AS |
