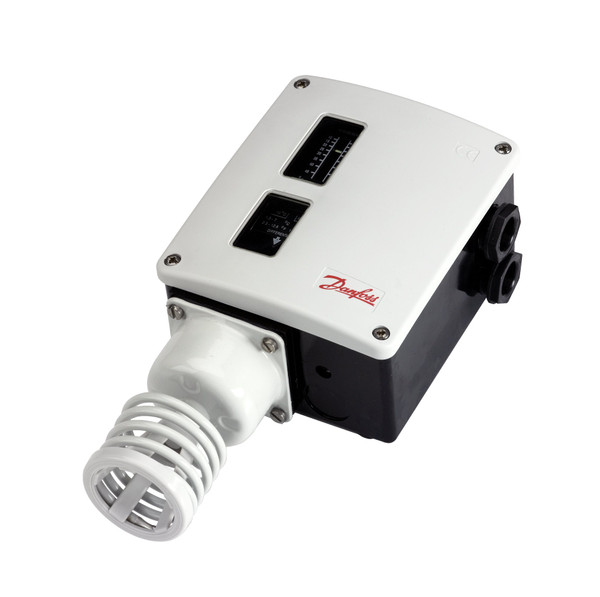

017L002466 Danfoss Thermostat, RT16L

Write a Review
SKU:
017L002466
Availability:
2 - 3 weeks

Product details Gross weight 0.93 kg Net weight 0.82 kg EAN 5702428042642 Gross weight 0.93 kg Net weight 0.82 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.93 kg
Net weight 0.82 kg
EAN 5702428042642
Gross weight 0.93 kg
Net weight 0.82 kg
EAN 5702428042642



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK
Charge type State Vapour
Contact differential [°C] [Max] 1.5 °C
Contact differential [°C] [Min] 0.7 °C
Contact function SPDT (neutral zone)
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 1.9 °C
Diff. @ Max. range setting[°C] [Min] 0.7 °C
Diff. @ Min. range setting[°C] [Max] 5 °C
Diff. @ Min. range setting[°C] [Min] 1.5 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. neutral zone [°C] 5 °C
Max. sensor temperature [°C] 100 °C
Max. sensor temperature [°F] 212 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 15 pc
Reset function Auto
Sensor type Room sensor
Serviceable Contact systems
Temperature range [°C] [Max] 38 °C
Temperature range [°C] [Min] 0 °C
Temperature range [°F] [Max] 100 °F
Temperature range [°F] [Min] 32 °F
Type RT16L
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK
Charge type State Vapour
Contact differential [°C] [Max] 1.5 °C
Contact differential [°C] [Min] 0.7 °C
Contact function SPDT (neutral zone)
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 1.9 °C
Diff. @ Max. range setting[°C] [Min] 0.7 °C
Diff. @ Min. range setting[°C] [Max] 5 °C
Diff. @ Min. range setting[°C] [Min] 1.5 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. neutral zone [°C] 5 °C
Max. sensor temperature [°C] 100 °C
Max. sensor temperature [°F] 212 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 15 pc
Reset function Auto
Sensor type Room sensor
Serviceable Contact systems
Temperature range [°C] [Max] 38 °C
Temperature range [°C] [Min] 0 °C
Temperature range [°F] [Max] 100 °F
Temperature range [°F] [Min] 32 °F
Type RT16L
Product name: Thermostat, Type: RT16L, Reset function: Auto, Contact function: SPDT (neutral zone), Temperature range [°C] [Min]: 0, Sensor type: Room sensor, Temperature range [°C] [Max]: 38

Product details

Gross weight 0.93 kg
Net weight 0.82 kg
EAN 5702428042642
Gross weight 0.93 kg
Net weight 0.82 kg
EAN 5702428042642



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK
Charge type State Vapour
Contact differential [°C] [Max] 1.5 °C
Contact differential [°C] [Min] 0.7 °C
Contact function SPDT (neutral zone)
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 1.9 °C
Diff. @ Max. range setting[°C] [Min] 0.7 °C
Diff. @ Min. range setting[°C] [Max] 5 °C
Diff. @ Min. range setting[°C] [Min] 1.5 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. neutral zone [°C] 5 °C
Max. sensor temperature [°C] 100 °C
Max. sensor temperature [°F] 212 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 15 pc
Reset function Auto
Sensor type Room sensor
Serviceable Contact systems
Temperature range [°C] [Max] 38 °C
Temperature range [°C] [Min] 0 °C
Temperature range [°F] [Max] 100 °F
Temperature range [°F] [Min] 32 °F
Type RT16L
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK
Charge type State Vapour
Contact differential [°C] [Max] 1.5 °C
Contact differential [°C] [Min] 0.7 °C
Contact function SPDT (neutral zone)
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 1.9 °C
Diff. @ Max. range setting[°C] [Min] 0.7 °C
Diff. @ Min. range setting[°C] [Max] 5 °C
Diff. @ Min. range setting[°C] [Min] 1.5 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. neutral zone [°C] 5 °C
Max. sensor temperature [°C] 100 °C
Max. sensor temperature [°F] 212 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 15 pc
Reset function Auto
Sensor type Room sensor
Serviceable Contact systems
Temperature range [°C] [Max] 38 °C
Temperature range [°C] [Min] 0 °C
Temperature range [°F] [Max] 100 °F
Temperature range [°F] [Min] 32 °F
Type RT16L
×
