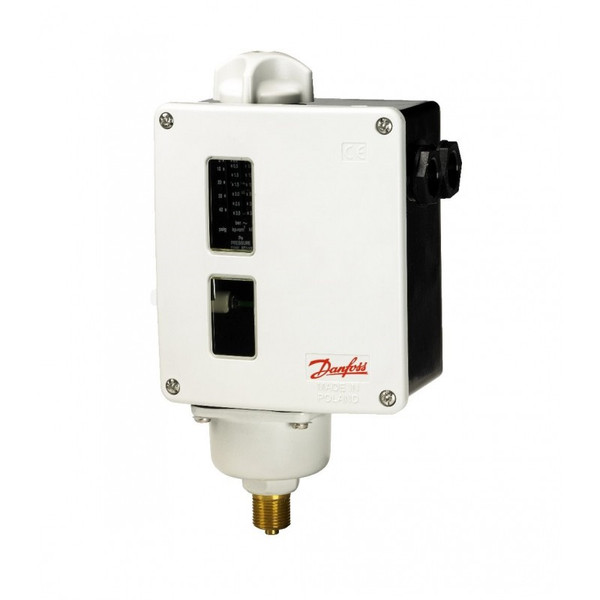

Type Code RT110L , Weight 0.910 Kg , Ambient temp. -50 - 70 °C , Ambient temp. -58 - 158 °F , Approval CCC More detailsRT switches are used in general industrial and marine sectors. The RT single pressure switches series consist of a variety of ordinary controls including neutral zone pressure switches, safety pressure switches for steam boiler plant, and gold plated fail-safe controls for applications in which safety or economical consequences are critical factors. RT switches have been in service for more than 60 years. Pressure ranges: -1 to 30 bar Replaceable contact system Also available with gold plated contact systems Fail-safe Adjustable differential Enclosure IP66 Available with min. and max. reset function (IP54) Also available as differential switch Available with TÜV approvals and with dead zone Available with all relevant marine approvals
| Type Code | RT110L |
| Weight | 0.910 Kg |
| Ambient temp. | -50 - 70 °C |
| Ambient temp. | -58 - 158 °F |
| Approval | CCC, CE, EAC, RMRS |
| Contact diff. | 0,08 bar |
| Contact function | SPDT (neutral zone) |
| Contact rating | AC1=10 A, 400 V |
| Contact rating | AC15=3 A, 400 V |
| Contact rating | AC3=4 A, 400 V |
| Contact rating | DC13=12 W, 220 V |
| Contact rating | LR=28 A, 400 V |
| EAN no. | 5702428042673 |
| Electr. conn. size | 2xPg 13.5 |
| Electr. spec. standard | EN 60947-4/-5 |
| Encl. | IP66 |
| Max. neutral zone | 0,20 bar |
| Max. test pressure | 8,0 bar |
| Max. Working Pressure | 7,0 bar |
| Max. Working Pressure | 100 psig |
| Pressure conn. std. | ISO228-1 |
| Pressure conne. type | G - 3/8 Male |
| Prod. description | Pressure Control |
| Prod. group | Switches and thermostats |
| Prod. name | Pressure switch |
| Regul. range | 0,20 - 3,00 bar |
| Regul. range | 2,90 - 43,50 psig |
| Reset | AUTO |
