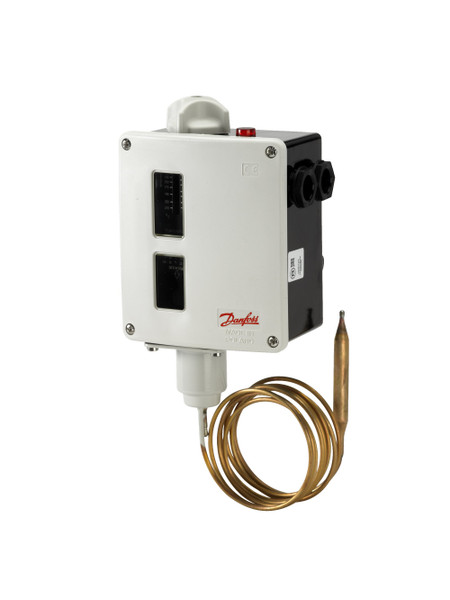

017-520866 Danfoss Thermostat, RT120

Write a Review
SKU:
017-520866
Availability:
2 - 3 weeks

Product details Gross weight 0.96 kg Net weight 0.85 kg EAN 5702423120659 Gross weight 0.96 kg Net weight 0.85 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.96 kg
Net weight 0.85 kg
EAN 5702423120659
Gross weight 0.96 kg
Net weight 0.85 kg
EAN 5702423120659



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
DNV
EAC
GL
LVD
NKK
PZH
RMRS
RoHS
RoHS China
TYSK
CMIM
Cap. tube length fraction [in] 78 3/4 in
Capillary tube length [mm] 2000 mm
Charge type Partial
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 9 °C
Diff. @ Max. range setting[°C] [Min] 1.8 °C
Diff. @ Min. range setting[°C] [Max] 30 °C
Diff. @ Min. range setting[°C] [Min] 7 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 260 °C
Max. sensor temperature [°F] 500 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 15 pc
Reset function Auto
Sensor pocket length min. [in] 4 13/32 in
Sensor pocket length min. [mm] 112 mm
Sensor size (Ø x L) [in] 3/8 x 3 1/8 in
Sensor size (Ø x L) [mm] 9.5 x 80 mm
Sensor type Remote bulb
Serviceable Contact systems
Temperature range [°C] [Max] 215 °C
Temperature range [°C] [Min] 120 °C
Temperature range [°F] [Max] 419 °F
Temperature range [°F] [Min] 248 °F
Type RT120
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
DNV
EAC
GL
LVD
NKK
PZH
RMRS
RoHS
RoHS China
TYSK
CMIM
Cap. tube length fraction [in] 78 3/4 in
Capillary tube length [mm] 2000 mm
Charge type Partial
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 9 °C
Diff. @ Max. range setting[°C] [Min] 1.8 °C
Diff. @ Min. range setting[°C] [Max] 30 °C
Diff. @ Min. range setting[°C] [Min] 7 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 260 °C
Max. sensor temperature [°F] 500 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 15 pc
Reset function Auto
Sensor pocket length min. [in] 4 13/32 in
Sensor pocket length min. [mm] 112 mm
Sensor size (Ø x L) [in] 3/8 x 3 1/8 in
Sensor size (Ø x L) [mm] 9.5 x 80 mm
Sensor type Remote bulb
Serviceable Contact systems
Temperature range [°C] [Max] 215 °C
Temperature range [°C] [Min] 120 °C
Temperature range [°F] [Max] 419 °F
Temperature range [°F] [Min] 248 °F
Type RT120
Product name: Thermostat, Type: RT120, Reset function: Auto, Contact function: SPDT, Temperature range [°C] [Min]: 120, Sensor type: Remote bulb, Temperature range [°C] [Max]: 215
