Description

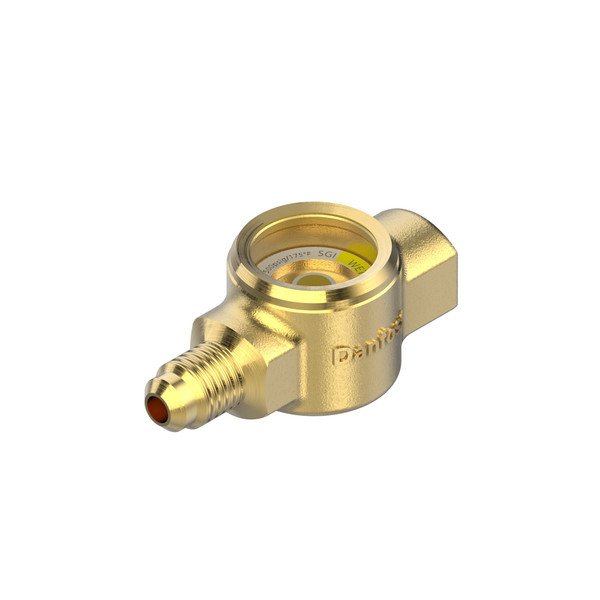

Inlet size [mm]: 6.00, Inlet connection type: FLARE, Outlet size [mm]: 6.00, Outlet connection type: FLARE
Product details
| Gross weight | 0.12 kg |
| Net weight | 0.12 kg |
| EAN | 5702422014638 |
| Gross weight | 0.12 kg |
| Net weight | 0.12 kg |
| EAN | 5702422014638 |
| Body material | Brass |
| Connection material | Brass |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Inlet connection type | FLARE |
| Inlet Internal/External | Internal |
| Inlet size [in] | 1/4 IN |
| Inlet size [mm] | 6 mm |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 500 psig |
| Moisture indicator | I indicator |
| Outlet connection type | FLARE |
| Outlet Internal/External | External |
| Outlet size [in] | 1/4 IN |
| Outlet size [mm] | 6 mm |
| Packing format | Multi pack |
| Product group | Sight glasses |
| Product name | Sight glass |
| Quantity per packing format | 24 pc |
| Refrigerants | R22 |
| Serviceable | No |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGI 6 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
| Body material | Brass |
| Connection material | Brass |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Inlet connection type | FLARE |
| Inlet Internal/External | Internal |
| Inlet size [in] | 1/4 IN |
| Inlet size [mm] | 6 mm |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 500 psig |
| Moisture indicator | I indicator |
| Outlet connection type | FLARE |
| Outlet Internal/External | External |
| Outlet size [in] | 1/4 IN |
| Outlet size [mm] | 6 mm |
| Packing format | Multi pack |
| Product group | Sight glasses |
| Product name | Sight glass |
| Quantity per packing format | 24 pc |
| Refrigerants | R22 |
| Serviceable | No |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGI 6 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
