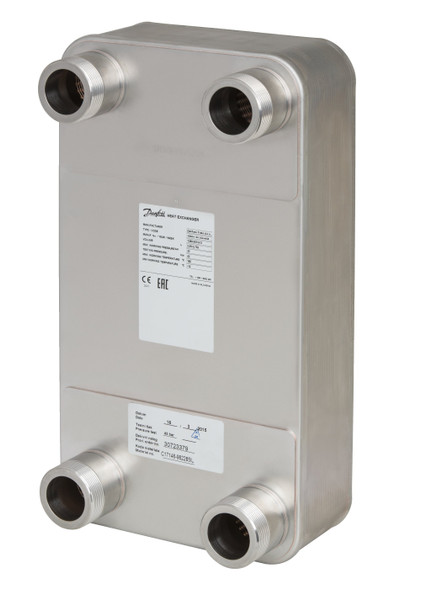

XB52M-1-110_2_25_A_2L2
Product details
| Gross weight | 39.45 kg |
| Net weight | 37.51 kg |
| EAN | 5702425122156 |
| Gross weight | 39.45 kg |
| Net weight | 37.51 kg |
| EAN | 5702425122156 |
| Approval type | PED 97/23/EC |
| Assembly site | 8220/Danfoss/Slovenia/Kamnik |
| Bolt holes mounting brackets length [mm] | 9 mm |
| Brazing material weight [Kg] | 0.04 kg |
| Channel volume per pcs side 1 [l] | 0.158 L |
| Channel volume per pcs side 2 [l] | 0.158 L |
| Channel volume total side 1 [l] | 8.532 L |
| Channel volume total side 2 [l] | 8.69 L |
| Channels | Medium |
| Circulation connection type | Groove |
| Connection diameter side 1 [mm] | 42 mm |
| Connection diameter side 2 [mm] | 42 mm |
| Connection length side 1 [mm] | 50 mm |
| Connection length side 2 [mm] | 50 mm |
| Cover plate thickness front [mm] | 2 mm |
| Cover plate thickness rear [mm] | 2 mm |
| Description | XB52M-1-110 |
| Flow type | parallel |
| Horizontal center porthole [mm] | 170 mm |
| Length between mounting holes [mm] | 65 mm |
| Number of passes | 1 |
| Number of plates | 110 |
| Number of plates maximum | 140 |
| Plate length [mm] | 462 mm |
| Plate material | 1.4404 |
| Plate pattern type | MPHE |
| Plate thickness [mm] | 0.25 mm |
| Plate type | M |
| Porthole diameter [mm] | 52 mm |
| Porthole diameter side 1 [mm] | 52 mm |
| Porthole diameter side 2 [mm] | 52 mm |
| Pressing depth [mm] | 1.5 mm |
| Product group | Brazed Heat Exchangers |
| Product Status | XI |
| Remarks | per channel |
| Test pressure side 1 [bar] [Max] | 43 bar |
| Total height without feet [mm] | 466 mm |
| Total width [mm] | 256 mm |
| Type | XB52M-1 |
| Vertical baseline to center porthole side 1 [mm] | 180 mm |
| Vertical baseline to center porthole side 2 [mm] | 180 mm |
| Vertical center porthole side 1 [mm] | 379 mm |
| Width between mounting holes [mm] | 240 mm |
| Working pressure side 1 [bar] [Max] | 25 bar |
| Working pressure side 2 [bar] [Max] | 25 bar |
| Working Temperature [°C] [Max] | 180 °C |
| Working Temperature [°C] [Min] | -10 °C |
| Approval type | PED 97/23/EC |
