Description

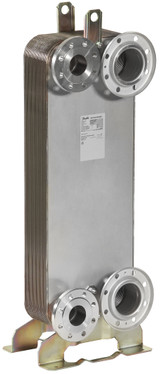

XB70L-1-50_2_25/16_A_1F65_1F100
Product details
| Gross weight | 165.15 kg |
| Net weight | 165.15 kg |
| EAN | 5702421900666 |
| Gross weight | 165.15 kg |
| Net weight | 165.15 kg |
| EAN | 5702421900666 |
| ABC Classification | B |
| Approval type | PED 97/23/EC GOST/Russia SVGW/Switzerland VA/Denmark |
| Assembly site | 8220/Danfoss/Slovenia/Kamnik |
| Bolt holes mounting brackets diameter [mm] | 13 mm |
| Brazing material | Copper |
| Brazing material weight [Kg] | 0.342 kg |
| Channel volume per pcs side 1 [l] | 0.55 L |
| Channel volume per pcs side 2 [l] | 0.7 L |
| Channel volume total side 1 [l] | 13.2 L |
| Channel volume total side 2 [l] | 17.5 L |
| Channels | Large |
| Connection diameter side 1 [mm] | 68.8 mm |
| Connection diameter side 2 [mm] | 108.3 mm |
| Connection length side 1 [mm] | 90 mm |
| Connection length side 2 [mm] | 90 mm |
| Connection side 1 | DN 65 |
| Connection side 2 | DN 100 |
| Connection standard | EN 1092 |
| Connection types | Flange |
| Cover plate thickness front [mm] | 6 mm |
| Cover plate thickness rear [mm] | 6 mm |
| Description | XB70L-1-50 |
| Flange bolt holes side 1 diameter [mm] | 18 mm |
| Flange bolt holes side 2 diameter [mm] | 18 mm |
| Flow type | parallel |
| Heatsurface per plate [m²] | 0.256 m2 |
| Heatsurface total [m²] | 12.288 m2 |
| Horizontal center porthole [mm] | 214 mm |
| Length between mounting holes [mm] | 345 mm |
| Number of bolt holes side 1 | 8 |
| Number of bolt holes side 2 | 8 |
| Number of passes | 1 |
| Number of plates | 50 |
| Number of plates maximum | 200 |
| Package depth [mm] | 1607 mm |
| Package height [mm] | 900 mm |
| Package width [mm] | 1800 mm |
| Pitch circle side 1 diameter [mm] | 145 mm |
| Pitch circle side 2 diameter [mm] | 180 mm |
| Plate length [mm] | 980 mm |
| Plate material | 1.4404 |
| Plate pattern type | Fishbone |
| Plate thickness [mm] | 0.4 mm |
| Plate type | L |
| Plate weight [Kg] | 1.06 kg |
| Plate width [mm] | 355 mm |
| Porthole diameter side 1 [mm] | 72 mm |
| Porthole diameter side 2 [mm] | 114 mm |
| Pressing depth [mm] | 2.3 mm |
| Product group | Brazed Heat Exchangers |
| Product Status | XP |
| Remarks | per channel |
| Studbold diameter [mm] | M12 |
| Test pressure side 1 [bar] [Max] | 43 bar |
| Total depth [mm] | 235 mm |
| Total height [mm] | 1110 mm |
| Total height without feet [mm] | 990 mm |
| Total width [mm] | 365 mm |
| Type | XB70L-1 |
| Vertical baseline to center porthole side 1 [mm] | 180 mm |
| Vertical baseline to center porthole side 2 [mm] | 203 mm |
| Vertical center porthole side 1 [mm] | 861 mm |
| Vertical center porthole side 2 [mm] | 816 mm |
| Width between mounting holes [mm] | 361 mm |
| Working pressure side 1 [bar] [Max] | 25 bar |
| Working pressure side 2 [bar] [Max] | 16 bar |
| Working Temperature [°C] [Max] | 180 °C |
| Working Temperature [°C] [Min] | -10 °C |
