Description

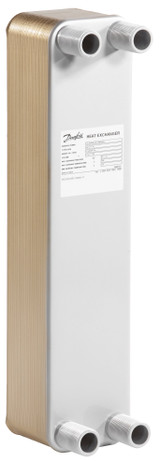

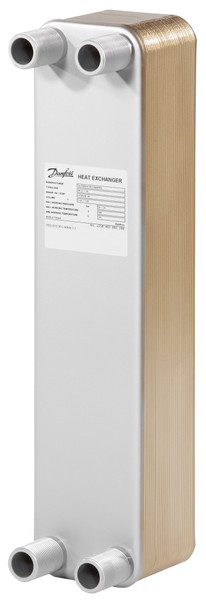

XB37M-1-30_2_25_A_1G1_1G1 50mm connect.
Product details
| Gross weight | 7.71 kg |
| Net weight | 7.71 kg |
| EAN | 5702421663912 |
| Gross weight | 7.71 kg |
| Net weight | 7.71 kg |
| EAN | 5702421663912 |
| ABC Classification | A |
| Approval type | PED 97/23/EC GOST/Russia SVGW/Switzerland VA/Denmark |
| Assembly site | 8220/Danfoss/Slovenia/Kamnik |
| Bolt holes mounting brackets diameter [mm] | 9 mm |
| Brazing material | Copper |
| Brazing material weight [Kg] | 0.029 kg |
| Channel volume per pcs side 1 [l] | 0.07 L |
| Channel volume per pcs side 2 [l] | 0.07 L |
| Channel volume total side 1 [l] | 0.98 L |
| Channel volume total side 2 [l] | 1.05 L |
| Channels | Medium mix of H/L |
| Connection diameter side 1 [mm] | 22 mm |
| Connection diameter side 2 [mm] | 22 mm |
| Connection length side 1 [mm] | 50 mm |
| Connection length side 2 [mm] | 50 mm |
| Connection side 1 | G 1 |
| Connection side 2 | G 1 |
| Connection standard | DIN ISO 228/1 |
| Connection types | Thread |
| Cover plate thickness front [mm] | 2 mm |
| Cover plate thickness rear [mm] | 2 mm |
| Description | XB37M-1-30 |
| Flow type | parallel |
| Heatsurface per plate [m²] | 0.051 m2 |
| Heatsurface total [m²] | 1.428 m2 |
| Horizontal center porthole [mm] | 72 mm |
| Length between mounting holes [mm] | 65 mm |
| Number of passes | 1 |
| Number of plates | 30 |
| Number of plates maximum | 120 |
| Package depth [mm] | 150 mm |
| Package height [mm] | 550 mm |
| Package width [mm] | 135 mm |
| Plate length [mm] | 519 mm |
| Plate material | 1.4404 |
| Plate pattern type | MPHE |
| Plate thickness [mm] | 0.25 mm |
| Plate type | M |
| Plate weight [Kg] | 0.123 kg |
| Plate width [mm] | 112 mm |
| Porthole diameter side 1 [mm] | 22 mm |
| Porthole diameter side 2 [mm] | 22 mm |
| Pressing depth [mm] | 1.5 mm |
| Product group | Brazed Heat Exchangers |
| Product Status | XP |
| Remarks | per channel |
| Test pressure side 1 [bar] [Max] | 43 bar |
| Total depth [mm] | 111.9 mm |
| Total height without feet [mm] | 525 mm |
| Total width [mm] | 119 mm |
| Type | XB37M-1 |
| Vertical baseline to center porthole side 1 [mm] | 180 mm |
| Vertical baseline to center porthole side 2 [mm] | 180 mm |
| Vertical center porthole side 1 [mm] | 479 mm |
| Width between mounting holes [mm] | 80 mm |
| Working pressure side 1 [bar] [Max] | 25 bar |
| Working pressure side 2 [bar] [Max] | 25 bar |
| Working Temperature [°C] [Max] | 180 °C |
| Working Temperature [°C] [Min] | -10 °C |
