Description

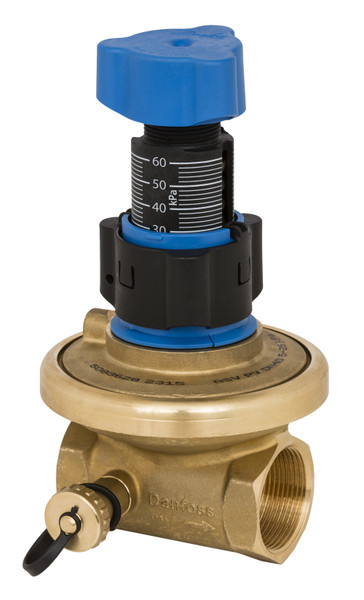

Product name: ASV-PV DN 15, 20-60 kPa, w/o insulation
Product details
| Gross weight | 0.9 kg |
| Net weight | 0.68 kg |
| EAN | 5710104086200 |
| Gross weight | 0.9 kg |
| Net weight | 0.68 kg |
| EAN | 5710104086200 |
| Connection types | Internal thread |
| Description | ASV-PV DN 15, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 kPa |
| Differential pressure setting [kPa] [Max] | 60 kPa |
| Differential pressure setting [kPa] [Min] | 20 kPa |
| Factory setting [kPa] | 30 kPa |
| Impulse tube length [m] | 1.5 m |
| Kvs values [m³/h] | 1.6 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| Product name | ASV-PV DN 15, 20-60 kPa, w/o insulation |
| Shut-off function | Yes |
| Type | ASV-PV 4G |
| Valve body material | Brass |
| Valve size | DN 15 |
| Connection types | Internal thread |
| Description | ASV-PV DN 15, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 kPa |
| Differential pressure setting [kPa] [Max] | 60 kPa |
| Differential pressure setting [kPa] [Min] | 20 kPa |
| Factory setting [kPa] | 30 kPa |
| Impulse tube length [m] | 1.5 m |
| Kvs values [m³/h] | 1.6 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| Product name | ASV-PV DN 15, 20-60 kPa, w/o insulation |
| Shut-off function | Yes |
| Type | ASV-PV 4G |
| Valve body material | Brass |
| Valve size | DN 15 |
