Description

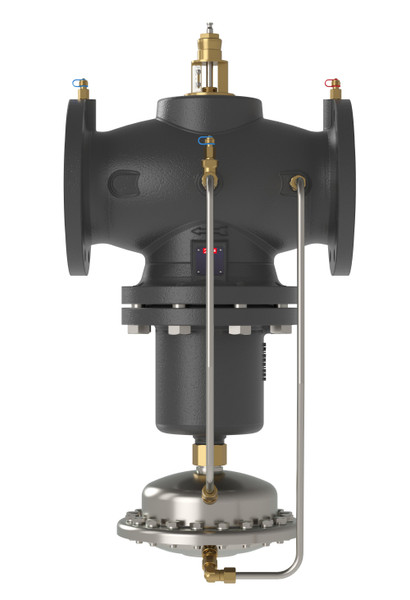

Product name: AB-QM DN125 HF PN16
Product details
| Gross weight | 123.8 kg |
| Net weight | 123.8 kg |
| EAN | 5702425082115 |
| Gross weight | 123.8 kg |
| Net weight | 123.8 kg |
| EAN | 5702425082115 |
| Actuator connection | Danfoss standard |
| Connection types | Flange |
| Description | AB-QM DN 125 High flow, with three test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 110 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN125 HF PN16 |
| Starting pressure [kPa] | 60 kPa |
| Stroke [mm] | 30 mm |
| Test plugs | With test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 125 |
| Actuator connection | Danfoss standard |
| Connection types | Flange |
| Description | AB-QM DN 125 High flow, with three test plugs, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 110 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN125 HF PN16 |
| Starting pressure [kPa] | 60 kPa |
| Stroke [mm] | 30 mm |
| Test plugs | With test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 125 |
