Description

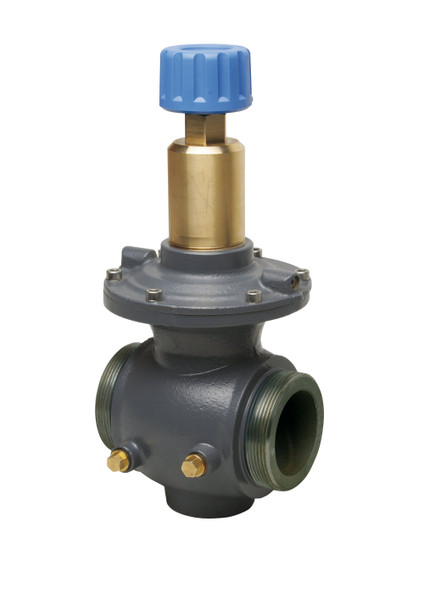

Product name: ASV-PV DN 50, 60-100 kPa
Product details
| Gross weight | 7.41 kg |
| Net weight | 6.81 kg |
| EAN | 5702421558430 |
| Gross weight | 7.41 kg |
| Net weight | 6.81 kg |
| EAN | 5702421558430 |
| Connection types | External Thread |
| Description | ASV-PV DN 50, 60-100 kPa, external thread, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 kPa |
| Differential pressure setting [kPa] [Max] | 100 kPa |
| Differential pressure setting [kPa] [Min] | 60 kPa |
| Factory setting [kPa] | 80 kPa |
| Impulse tube length [m] | 2.5 m |
| Kvs values [m³/h] | 20 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| Product name | ASV-PV DN 50, 60-100 kPa |
| Shut-off function | Yes |
| Type | ASV-PV 3G |
| Valve body material | Grey cast iron (EN-GJL-250) |
| Valve size | DN 50 |
| Connection types | External Thread |
| Description | ASV-PV DN 50, 60-100 kPa, external thread, automatic balancing valve |
| Differential pressure over the valve [kPa] [Max] | 250 kPa |
| Differential pressure setting [kPa] [Max] | 100 kPa |
| Differential pressure setting [kPa] [Min] | 60 kPa |
| Factory setting [kPa] | 80 kPa |
| Impulse tube length [m] | 2.5 m |
| Kvs values [m³/h] | 20 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Return pipe |
| Pressure class | PN 16 |
| Product group | Automatic balancing |
| Product name | ASV-PV DN 50, 60-100 kPa |
| Shut-off function | Yes |
| Type | ASV-PV 3G |
| Valve body material | Grey cast iron (EN-GJL-250) |
| Valve size | DN 50 |
