Description

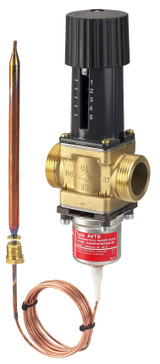

AVTB PN16 25/5,5 30-100 2,3m intRp fl/re
Product details
| Gross weight | 1.71 kg |
| Net weight | 1.51 kg |
| EAN | 5702421100752 |
| Gross weight | 1.71 kg |
| Net weight | 1.51 kg |
| EAN | 5702421100752 |
| Ambient temperature [°C] [Max] | 70 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 2.3 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 1 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Description | AVTB PN16 25/5,5 30-100 2,3m intRp fl/re |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| Kvs values [m³/h] | 5.5 m3/h |
| Manufacturer's name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 130 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Temperature controllers |
| Rection time close [sec] | 25 s |
| Rection time open [sec] | 25 s |
| Return limiter function | No |
| Sensor connection | M14x1 / R1/2 ext thread acc. DIN 2999 |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 150 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 100 °C |
| Temperature setting range [°C] [Min] | 30 °C |
| Time constant [sec] | 25 s |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | AVTB |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
| Ambient temperature [°C] [Max] | 70 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Approval standard | ETA VA 1.54/18952 |
| Capillary tube length [m] | 2.3 m |
| Cavitation factor | 0.4 |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 |
| Connection size | Rp 1 |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Description | AVTB PN16 25/5,5 30-100 2,3m intRp fl/re |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Flow control | No |
| Function | Temp. controller |
| Function VSP - P | No |
| Function VSP - Q | No |
| Function VSP - T | Yes |
| Impulse tube material | Copper mat. No 2.0090 |
| Kvs values [m³/h] | 5.5 m3/h |
| Manufacturer's name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature at sensor [°C] [Max] | 130 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Temperature controllers |
| Rection time close [sec] | 25 s |
| Rection time open [sec] | 25 s |
| Return limiter function | No |
| Sensor connection | M14x1 / R1/2 ext thread acc. DIN 2999 |
| Temperature control | Yes |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 150 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 100 °C |
| Temperature setting range [°C] [Min] | 30 °C |
| Time constant [sec] | 25 s |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Type | AVTB |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 |
| Valve cone material | NBR rubber |
| Valve seat material | Cr Ni steel W.no 1.4301 |
