Description

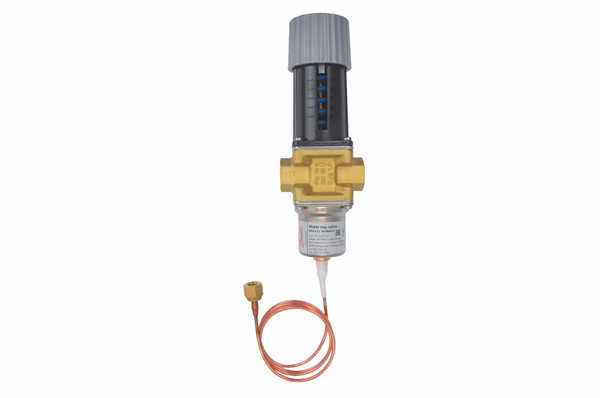

Product name: Pressure operated water valve, Type: WVFX 15, Connection type: NPT, Connection Internal/External: Internal, Kv value [m³/h]: 1.900
Product details
| Gross weight | 1.4 kg |
| Net weight | 1.13 kg |
| EAN | 5702428866842 |
| Gross weight | 1.4 kg |
| Net weight | 1.13 kg |
| EAN | 5702428866842 |
| Approval | C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| Cap. tube length fraction [in] | 31 31/64 in |
| Capillary tube length [mm] | 800 mm |
| Connection Internal/External | Internal |
| Connection size [in] | 1/2-14 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Control pressure range [bar] [Max] | 23 bar |
| Control pressure range [bar] [Min] | 4 bar |
| Control pressure range [psig] [Max] | 333 psig |
| Control pressure range [psig] [Min] | 60 psig |
| Cv value [gal/min] | 2.2 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| Equipment | Schrader valve |
| Kv value [m³/h] | 1.9 m3/h |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 29 bar |
| Max.test press.(refrig.)[psig] | 420.6 psig |
| Media | Fresh water Neutral brine |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Model no. | TL |
| MWP (refrigerant) [bar] | 26.4 bar |
| MWP (refrigerant) [psig] | 383 psig |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Outlet size [mm] | 15 mm |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product description | Water valve |
| Product family name | WVFX |
| Product group | Water regulating valves |
| Product name | Pressure operated water valve |
| Quantity per packing format | 10 pc |
| Refrigerants | R1270 R1290 R134a R22 R290 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A R600 R600a R407H R449B R134a/R513A R454C R455A R515B R516A R1234yf |
| Serviceable | Water valve spare parts |
| Type | WVFX 15 |
| Approval | C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| Cap. tube length fraction [in] | 31 31/64 in |
| Capillary tube length [mm] | 800 mm |
| Connection Internal/External | Internal |
| Connection size [in] | 1/2-14 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Control pressure range [bar] [Max] | 23 bar |
| Control pressure range [bar] [Min] | 4 bar |
| Control pressure range [psig] [Max] | 333 psig |
| Control pressure range [psig] [Min] | 60 psig |
| Cv value [gal/min] | 2.2 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| Equipment | Schrader valve |
| Kv value [m³/h] | 1.9 m3/h |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 29 bar |
| Max.test press.(refrig.)[psig] | 420.6 psig |
| Media | Fresh water Neutral brine |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Model no. | TL |
| MWP (refrigerant) [bar] | 26.4 bar |
| MWP (refrigerant) [psig] | 383 psig |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Outlet size [mm] | 15 mm |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product description | Water valve |
| Product family name | WVFX |
| Product group | Water regulating valves |
| Product name | Pressure operated water valve |
| Quantity per packing format | 10 pc |
| Refrigerants | R1270 R1290 R134a R22 R290 R404A R407A R407C R407F R422B R422D R448A R449A R450A R452A R507A R513A R600 R600a R407H R449B R134a/R513A R454C R455A R515B R516A R1234yf |
| Serviceable | Water valve spare parts |
| Type | WVFX 15 |
