Description

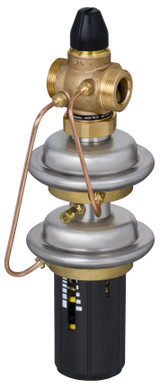

AVPQ 4 PN25 25/8 0,2-1,0/0,2 thr flow
Product details
| Gross weight | 5.59 kg |
| Net weight | 5.5 kg |
| EAN | 5702421540626 |
| Gross weight | 5.59 kg |
| Net weight | 5.5 kg |
| EAN | 5702421540626 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.3 |
| Cavitation factor 25% | 0.66 |
| Cavitation factor 50% | 0.54 |
| Cavitation factor 75% | 0.45 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | AVPQ 4 PN25 25/8 0,2-1,0/0,2 thr flow |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Differential pressure setting [bar] [Max] | 1 bar |
| Differential pressure setting [bar] [Min] | 0.2 bar |
| Flow control | Yes |
| Flow limitation | No |
| Flow rate [m3/h] | 3.5 m3/h |
| Flow rate [m3/h] [Max] | 4.5 m3/h |
| Flow rate [m3/h] [Min] | 0.2 m3/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Diff. press. and flow controller |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| Kvs values [m³/h] | 8 m3/h |
| Leakage rate [% Kvs] | 0.02 |
| Manufacturer's name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 0 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 25 bar |
| Product group | Pressure flow controllers |
| Sealing DP material | EPDM |
| Setting type | Adjustable |
| Stem position | Normally open |
| Type | AVPQ 4 |
| Valve body material | Red bronze CuSn5ZnPb (Rg5) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Cavitation factor 100% | 0.3 |
| Cavitation factor 25% | 0.66 |
| Cavitation factor 50% | 0.54 |
| Cavitation factor 75% | 0.45 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | AVPQ 4 PN25 25/8 0,2-1,0/0,2 thr flow |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Differential pressure setting [bar] [Max] | 1 bar |
| Differential pressure setting [bar] [Min] | 0.2 bar |
| Flow control | Yes |
| Flow limitation | No |
| Flow rate [m3/h] | 3.5 m3/h |
| Flow rate [m3/h] [Max] | 4.5 m3/h |
| Flow rate [m3/h] [Min] | 0.2 m3/h |
| Flow restrictor diff.pressure - dpb [bar] | 0.2 bar |
| Function | Diff. press. and flow controller |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| Kvs values [m³/h] | 8 m3/h |
| Leakage rate [% Kvs] | 0.02 |
| Manufacturer's name | Danfoss |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 0 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 25 bar |
| Product group | Pressure flow controllers |
| Sealing DP material | EPDM |
| Setting type | Adjustable |
| Stem position | Normally open |
| Type | AVPQ 4 |
| Valve body material | Red bronze CuSn5ZnPb (Rg5) |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
